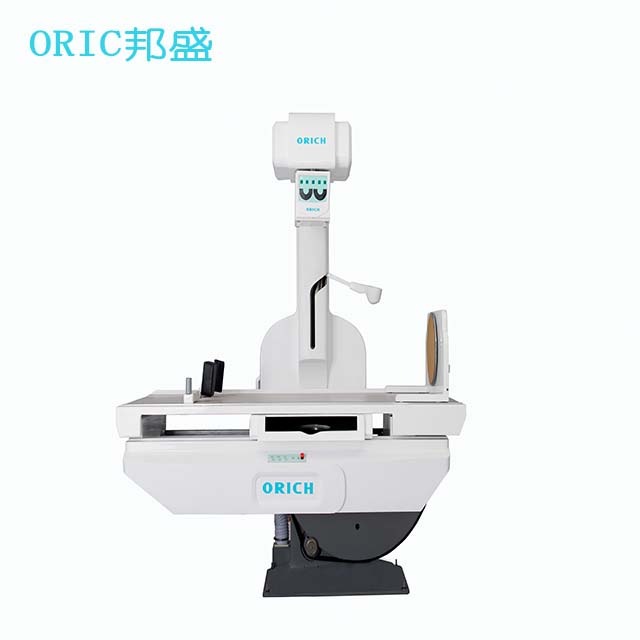

DF-323H is gastrointestinal x ray machine. It makes a tangible difference in any practice, letting you perform fluoroscopy and radiography examinations with ease and efficiency.
| Standard Configuration | ||||||
| No | Photo | Item | Technology Parameter | |||
| 1 | Generator | Output Power: 32kW | ||||
| High frequency output: 25kHz | ||||||
| kVp Range: 40-150 KV | ||||||
| mA Range: 10-400mA | ||||||
| Exposure Timer Range: 0.001-6.3s (maximum) | ||||||
| mAs Range (non-AEC): 1.5-630mAs | ||||||
| Anatomical Programs (APR): yes | ||||||
| Options: AEC, DAP | ||||||
| Input Phase / Voltage: 3 phase, AC380V±10%, 50±1Hz | ||||||
| 2 | X-ray Tube | Nominal focal spot value: 0.6mm (small focus)/1.2mm (large forcus) | ||||
| Rotation speed (min-1): 2700rpm@50Hz, 3200rpm@60Hz | ||||||
| Maximum tube voltage: 150kV | ||||||
| Maximum filament current: 370mA (small focus) / 760mA(large focus) | ||||||
| Anode Heat Content: 150kHU (111KJ) | ||||||
| Max rating (0.1s) (kw): 20/46kW@50Hz, 22/50kW@60Hz | ||||||
| 3 | Radiographic table | Focal spot to tabletop/wall stand: 1100mm (min) | ||||
| Stand | Tube vertical travel range:750mm | |||||
| Tube transverse travel range: 1250mm | ||||||
| Tube rotation around table column: ±135°± 2° | ||||||
| Tube rotation about the horizontal axis:+180° to -180°, locked at each 0°, 90°, 180°, 270° | ||||||
| Table | Standard table top size: L2200mm×W785mm | |||||
| Table height: 690mm | ||||||
| Table top travel, longitudinal: 1000mm (min) | ||||||
| Table top travel, transverse: 160mm (min) | ||||||
| Gird | Size: 388mm×464mm (15"×18") | |||||
| R=10:1, f=100cm, N=40 line/cm | ||||||
| 4 | Collimator | Control method: Manual | ||||
| Maximum X-ray field coverage range: 43cm*35cm | ||||||
| The average brightness of the light field: >150lux | ||||||
| Input power: 24V AC, 10A | ||||||
| 5 | Wall stand | Minimum focal spot height: 800mm | ||||
| Vertical height: 2000mm | ||||||
| Vertical travel range: 1000mm (min) | ||||||
| Film size: 8"×10",10"×12",11"×14",14"×14", 12"×15", 14"× 17" | ||||||
| Grid | Size: 388mm×464mm (15"× 18") | |||||
| R=10:1, f=180cm, N=40 line/cm | ||||||
Two configurations:
1. Export generator with 1 million pixels CCD camera.
2. Orich generator with 0.4 million pixels CCD camera.
50kw double function fluoroscopy x ray equipment manufacturer Feature:
l Compact island design of the diagnostic table perfectly realized diversified diagnoses, and can satisfy the special requirements of the interventional therapy.
l 740mm moving distance of the x-ray tube, adequately satisfies different diagnostic requirements.
l -25°tilting function is convenient to control contrast.
l State-of-the-art design fully improves the safety and comfort.
Standard export package: wooden case
Good package to protect machine from damp, mildew and broken.
Shipping:
It's available to ship the goods by sea, air and train, depends on customers' request.
Installation:
Oversea engineers are available to intsall the machines on site.
Technical training:
1. Professional English-speaking engineer can provide training on spot.
2. Professional English-speaking engineer are available to provide training in the factory.
3. Remote instruction by tools like PC, mobile phone etc are available.
Warranty:
Normally one year, it can prolong according to customers' request.
1. ORICH medical equipment(Tianjin) co.,ltd
ORICH Medical is the Sino-US joint venture by and between Tianjin Pharmaceutical Holdings Ltd and US Full State Group. It is a high-tech enterprise specializes in R&D and production of diagnostic radiology products.
We has gotten the quality system QSR820, ISO9001, ISO13485, YY/T0287 and our product has gotten certificates, like CE(EU), GOST(Russia), and etc.
2. Exhibitions
We have attended main exhibitions every year:
FIME, MEDICA, ARABA HEALTH, AFRICA HEALTH, CMEF etc.
Pls check our website, we have analog x ray machine, digital x ray machine, gastrointestinal x ray machine, c-arm, mobile x ray machine etc. If you have any interests on any machine, pls feel free to contact with us!
Welcom to your visit and cooperation inquiry!
